Tobacco Pipe Refurbishing

Peterson Emerald 53

4 Comments

I hope everyone had a Happy and safe Christmas, enjoyed family and friends and received some memorable gifts. My memorable gift would come as a lot of estate pipes that my wife snagged as a Christmas gift and after a little digging I saw what she payed and I was even more surprised.

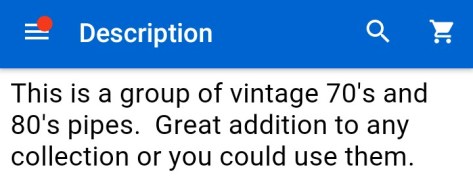

screenshot_2016-12-27-19-35-372screenshot_2016-12-27-19-35-112

   Newly listed, new seller (zero feedback) and my wife said she knew at least one in the lot was a Peterson, even if she was wrong it was still a good deal. I had to go back through completed listings to find the original auction and I must say she has a good eye, the photos were poor and the description above offered null. So I guess there are deals to be had on the old bay.

photogrid_1482790206150

I was a pretty happy pappy on Christmas morning. Three Peterson’s, a Jobey, a small leather covered Big Ben and a bent little dinky pipe named Dinky. I started with the Peterson Emerald 53, a neat little pipe, tho the emerald band had lost its luster.

The Restore

photogrid_1482789842422photogrid_1482790092226photogrid_1482789880870photogrid_1482891080655

Overall the little Pete was in good shape, some rim build up, light chatter and oxidation, the emerald band was now a cream color and a chip at the rim, (highlighted in the above photos).

20161226_1637102

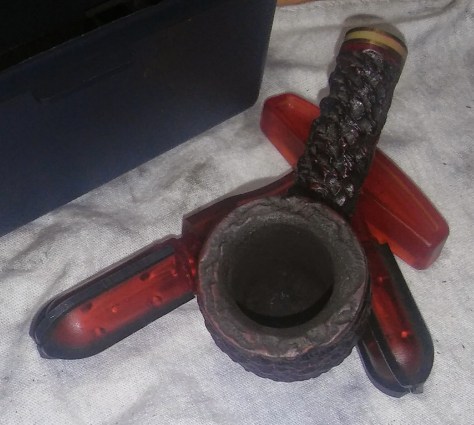

I started off with the chamber and my PipNet reamer, starting with the smallest attachment and finishing with the second. The chamber was free of any char/defects.

20161217_1027342photogrid_1482817793197

Next the rim build up, I applied Method Wood For Good polish to the rim with a Q-Tip and left it aside to penetrate the debris.Once the build up softens its easily removed with Q-Tips.

20161226_1819522

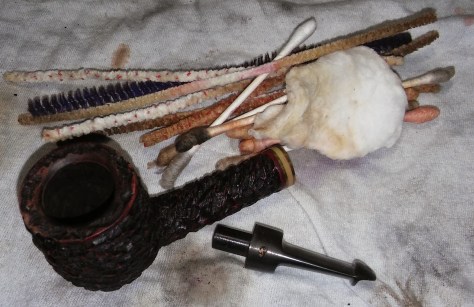

Now with the rim clean I moved onto the internal cleaning. Using EverClear, shank/mortise brushes, Q-Tips and stiff/soft pipe cleaners I scrubbed the internals of the stummel and stem until my final pipe cleaner came out as it went in. I wiped down the exterior of the stem with an EverClear dampened makeup pad.

photogrid_1482817379996

Now to address the chipped rim. I stated by cleaning the area to be repaired with a Q-Tip dipped in EverClear and removing any loose bits of briar. I then applied a thin layer of Gorilla Glue to the chipped area and then packed with briar dust, I would repeat this process a few times, building layer upon layer of glue and briar dust until I had built up the area just past the existing rim. I now had room to sand the repair without changing the shape of the pipe. With the patch not completely set I lightly sanded the area with an emery board until it was flush with the original rim, using a pick and micro-mesh pads I carefully began to rework the patch to match the original rim and rustication.

photogrid_1482817548519

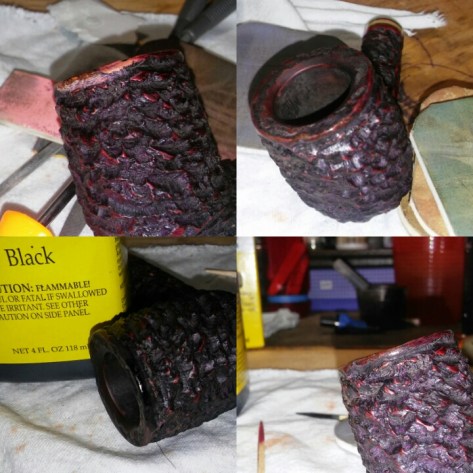

Once the shape and rustication I wanted was achieved I applied Fiebing’s black to the patch and lightly flamed to set the dye, removing the excess with an alcohol dampened Q-Tip. I then lightly polished the area with a worn micro-mesh pad, then going back in with red Fiebing’s dye, lightly flaming once again to set the dye, removing the excess with an alcohol dampened Q-Tip and lightly polishing the area one last time with worn micro-mesh.

photogrid_1482817309560

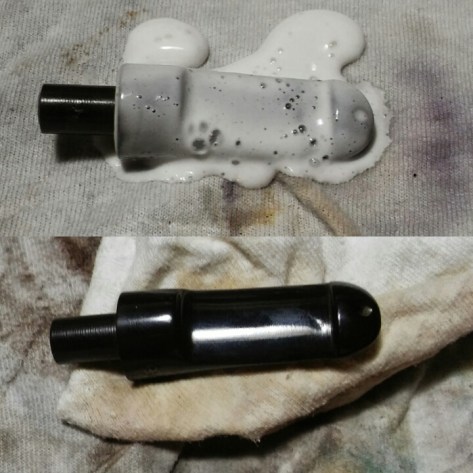

With the stummel complete I moved to the stems oxidation, I applied a generous amount of non-bleach Soft Scrub to the stem and left it to penetrate the oxidation. Once the Soft Scrub turns from white to a brownish color its time to scrub vigorously with a rag adding more Soft Scrub as needed until all oxidation has been removed (holding the stem under natural light will help to see if all oxidation has been removed).

20161226_2349402

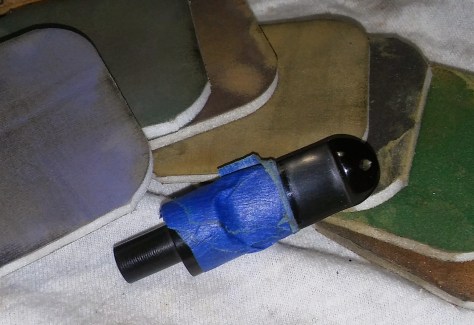

With the oxidation removed the stem was in fine shape aside from some light chatter, I taped off the bulk of the stem to keep my sanding in one area. Using 1000 grit sand paper wet I began working the area until no visible chatter was left. I then ran the stem though the various grits of micro-mesh 1500-2400 wet and 3200-12000 dry. I removed the tape before polishing the whole stem with 8000 and 12000 mesh pads. (When tapping off a portion of the stem there will be a visible difference between the area of work and the untouched portion, it requires buffing with blue compound to remove the fine sanding marks and will match up once again).

20161227_00165622

Now the rustication of the Peterson Emerald is far deeper then the Donegal line, so standard buffing would be disastrous, I went with Renaissance Wax and a shoe polish brush instead. I will say Renaissance Wax is not something I’ll break out that often, its not that the finished pipe isn’t beautiful, its the smell,” I can’t stand the smell ” but the aroma fades with time and leaves behind a beautiful pipe.

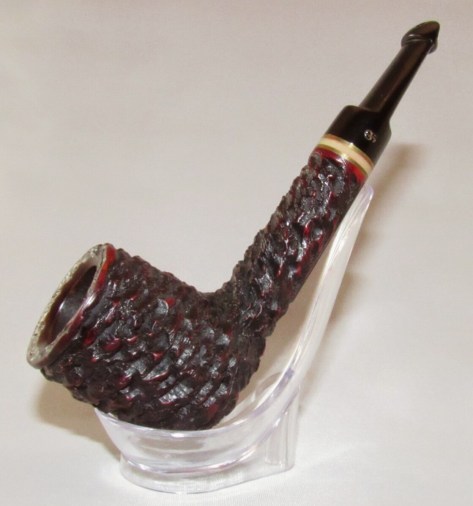

Complete



201612291819352201612291819492201612291820212photogrid_1483049060357201612291822202

Buffed the stummel with Renaissance Wax and a shoe polish brush, buffing the stem with blue compound.

Thanks For stopping by.

Tim.

Custom-Bilt/Custombilt, Tobacco Pipe Refurbishing

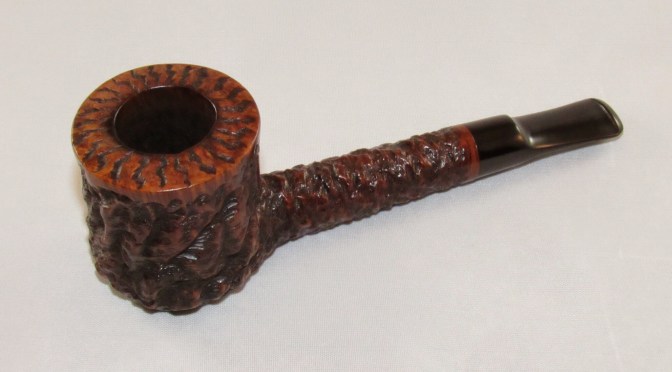

Custom-Bilt, Tracy Mincer Patented Filter

Leave a comment

My wife picked up this Bilt a couple of weeks ago as an early Christmas present from Mike at Briar Blues . She was thoroughly impressed by his customer service, there was a mix up in shipping and the pipe was shipped from Washington to California and we live in New York. The mix up was caught quickly, corrected and shipped to our front stoop. Now this is something that happens all the time with businesses, so why is this different. The difference is in the way it was handled, the mistake was caught quickly, corrected and we were notified immediately, no excuses were made. Aside from top notch costumer service he has a beautiful selection of pipes for every budget, his descriptions, photos and site layout are spot on, as a first time buyer from his establishment we are more then pleased and will definitely return. If you haven’t already checked out his online shop give it a look Briar Blues.

20160109_191300~2

20160820_1631262
The tell tale red dot of the Patented Filter.

The Tracy Mincer Patented Filter, granted to Mincer September 7, 1937 is one of the more interesting pipes made by Mincer, the design is unusual there is an aluminum insert that is held by a small plastic rod at either side of the mortise, usually the rod is red but I have seen black used as well, it can be difficult to spot on heavily rusticated pipes as it was on this Bilt being restored here. This particular Bilt I had an idea was a Patented Filter as it resembled some of the others in my collection but I could not see the tell tale red dot in the photos. The only draw back I’ve found to this Mincer line of pipes is the reverse style tenon, it can be difficult to achieve a tight fit between tenon and stem once the pipe is restored.

The Restore

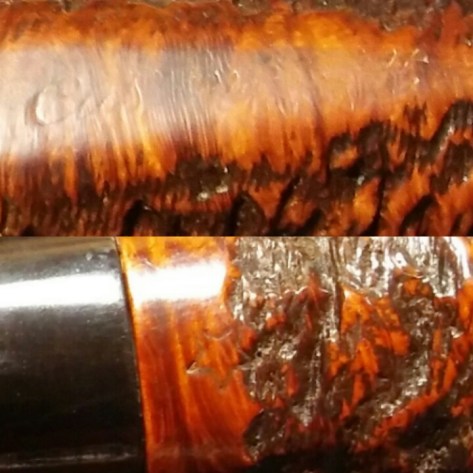

photogrid_148210630758520161208_111407220161208_1116292photogrid_1482106395457

This Custom-Bilt was available in the pipes under $100 section at Briar Blues , when I received the pipe it was partially cleaned, the oxidation had been removed from the stem, the stummel had been buffed and the chamber reamed. The condition of the pipe was decent no major problems, the nomenclature worn but you can still just make it out, the star shape stamp was well stamped on the right side of the shank, very light chatter and a little rim darkening. The internals on this line are a little difficult to clean well due to the filter system and would need a bit more attention.

photogrid_1482106683459

 For the most part the rim was clean just a small burn at the back end of the rim and overflow in-bedded in the carved rim. I applied Method Wood For Good polish to the rim and left to penetrate the embedded crud. Once the Method softened the build up I used Q-Tips, a toothbrush and a pick to remove the debris.

photogrid_1482106761175

The chamber was pre-reamed when my wife purchased the pipe but there was still a bit of old cake remaining, my first thoughts it could be a burnout but thankfully it wasn’t. Using the old Castleford reamer I removed the last bit of leftover cake, I then gave the chamber a quick once over with EverClear and Q-Tips. Before moving on to the internal cleaning of the mortise and stem I ran a retort to loosen up the old tars and tobacco.

photogrid_1482106807911

After the retort I cleaned the internals of the airway, mortise and stem using EverClear, mortise/shank brushes, stiff/soft pipe cleaners and Q-Tips cleaning until my final pipe cleaner came out as it went in. I cleaned the inner of the stem with EverClear and cotton balls.

photogrid_1482106452449

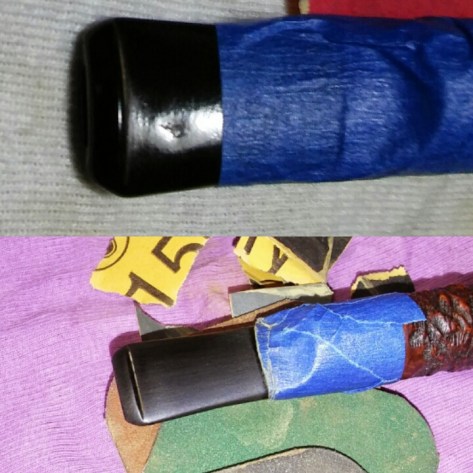

The stem oxidation was removed prior to my receiving the pipe but there was still a few tooth indentations, the rest of the stem look good so I taped off the bulk of the stem so my sanding would remain in the damaged area of the stem. I sanded the stem with 800, 1000, 1500 grit sandpaper wet to remove the indentations. I then ran the stem though the various grits of micro-mesh pads 1500-2400 and 3200-6000 dry, I removed the tape before sanding the whole stem with 8000 and 12000. ( There will be a noticeable difference in the finish of the stem after sanding one portion of the stem and leaving the other untouched, I buffed the stem with blue compound at low a speed to remove the fine sanding marks, I’ve had  great results using this process, once buffed the two sides blend perfectly.)

20161208_1406212

 After cleaning the old tars from the recessed stem the fit was no longer snug. I use the same process as I do with a standard tenon stem but instead of expanding the vulcanite tenon I am contracting the recessed stem,  I lightly heated the tenon end of the stem with a Bic lighter to contract the vulcanite and checking for a snug fit each time its heated (you have to take your time here as overheating with cause a non-fitting stem quite fast), I had to play with it a bit to get the right fit. For the saddle bit  Patented Filter Custom-Bilt pipes in my collection I use a heat gun on the lowest setting as the stem martial is thicker and more difficult to get it to contract.

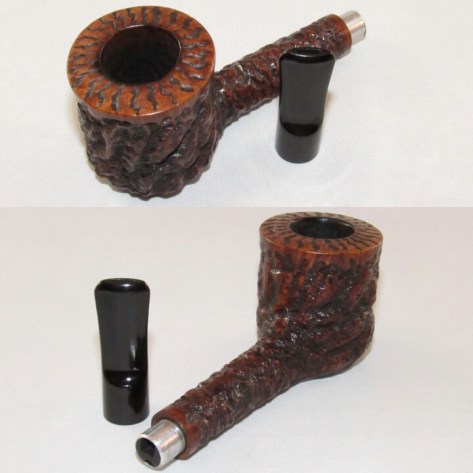

Complete

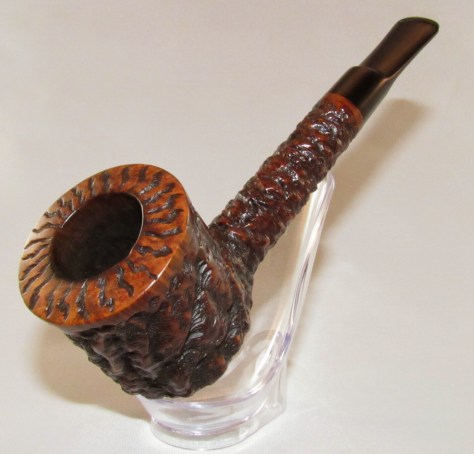

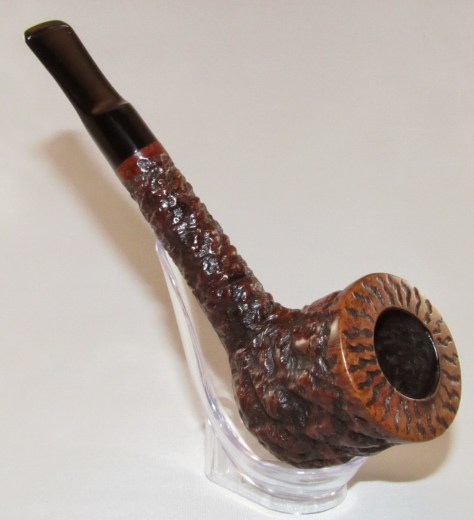

201612291831072201612291831372photogrid_1483049922954photogrid_1483049617544201612291826402

I finished up on the buffer with carnauba, a round on the nude wheel and a micro-fiber hand buff. Buffing the stem with blue compound.

Thanks For Taking A Look.

Tim.
