Tobacco Pipe Refurbishing

Savinelli SherWood Rock Briar 504

2 Comments

20160705_174524

One more from the lot. Savinelli one of my favorite brands, beautiful pipes, that smoke great and at a price an average Joe can afford. I have quite a few in my collection, from my more expensive Autograph 4 to my less expensive Trevi each one preforms wonderfully.

The Restoration.

PhotoGrid_146829123285920160709_215727~2PhotoGrid_1468291302240

The pipe had a few issues, oxidation, chatter and the stem logo was buffed clean off. The edge of the rim towards the shank was sanded or buffed down unevenly compared to the rest of the rim. A ton of carnauba wax was used and caked in every nook and cranny. On the plus side the nomenclature is crisp and the pipe seemed pretty clean.

20160709_220256~2

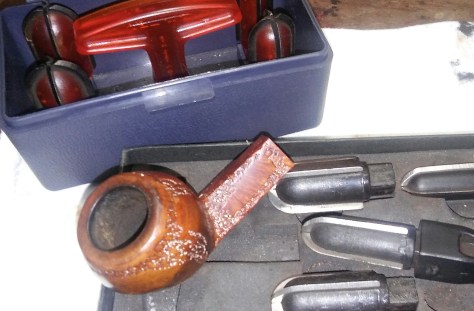

The use of both the PipNet and the CastleFord reamer would be used once again to ream back the cake in this smaller chambered pipe.

PhotoGrid_1468291357738

Next I cleaned the internals of the stem and stummel with EverClear,  stiff/soft pipe cleaners, Q-Tips and makeup pads, cleaning until my final pipe cleaner came out as it went in. The internals were surprisingly clean.

PhotoGrid_1468291717978

The stummel was over waxed, every crevice was caked in the stuff. Using Method Wood For Good Polish, a children’s toothbrush and a straight pin I began to remove the excess wax.

PhotoGrid_1468291977222

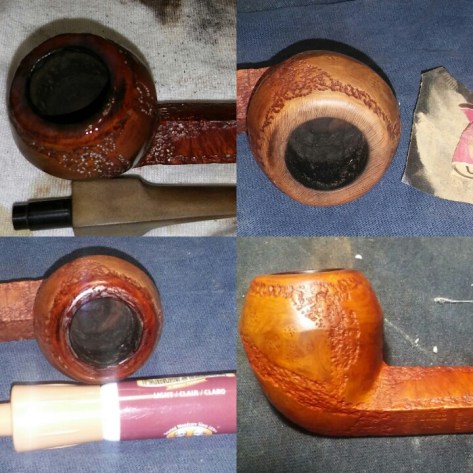

I removed the little build up on the rim with Method and a Q-Tip. The rim was uneven, it looked as if the previous owner tried to remove a rim burn and left it unfinished. To even things out I sanded the higher portions of the rim with 400, 800 and 1000 grit sandpaper until I had a uniformed shape. I re-stained the rim with a light brown touch-up marker and removed the excess with a alcohol dampened rag.

PhotoGrid_1468292777262PhotoGrid_1468292796112

The stem was heavily oxidized, I applied a generous amount of non-bleach Soft Scrub and left it aside to penetrate the oxidation. Once the Soft Scrub turns from white to a brownish color its time to scrub vigorously with a rag until the oxidation is removed, adding more Soft Scrub as needed. Holding the stem under natural light will help to see if all oxidation was removed. I tried heat to remove some of the deep tooth impressions using a Bic lighter (moving the flame at all times never leaving it in one spot to long) a few raised but a couple of stubborn deeper impressions would need filling.

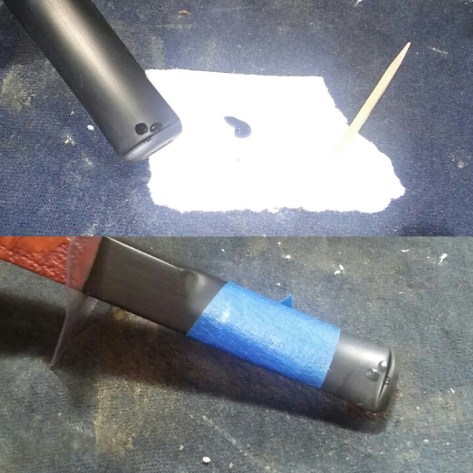

PhotoGrid_1468504577315

I mixed thick black CA glue and charcoal powder together to fill in the deep impressions hitting it with accelerator to set the patch, I left it overnight to cure. The following morning I taped off the bit/lip area so my more abrasive sanding would remain in one area. I sanded with 400, 800 and 1000 grit sandpaper to blend the repair.

20160712_131716~2

I now ran the stem though the various grits of micro-mesh pads.

Complete.

20160724184306~220160724184321~220160724184338~220160724184411~2PhotoGrid_1469497446012

I finished up on the wheel with white diamond, a few coats carnauba and a micro-fiber hand buff. Buffing the stem with blue compound and carnauba.

Thanks For Taking A Look.

Tim.

Tobacco Pipe Refurbishing

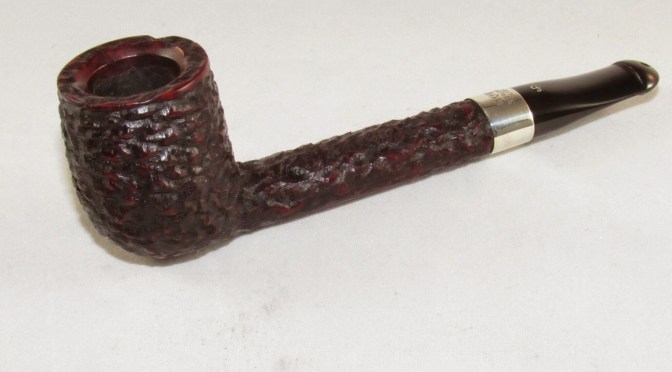

Peterson – Donegal Rocky 264

1 Comment

20160705_174524

My latest estate lot had quite a few goodies and I found myself totally engulfed in my work, pipe after pipe, only pausing to take photos of my process. The next subject to hit my work desk, a Peterson Donegal Rocky 264. A more petite Pete then I would typically collect but I’ve always had a soft spot for the Donegal Rocky series. I have a new found respect for the Lovat shape, a mini version of the Canadian shape that I so love.

The Restoration

PhotoGrid_1468504063897PhotoGrid_1468504012077PhotoGrid_1468458836257

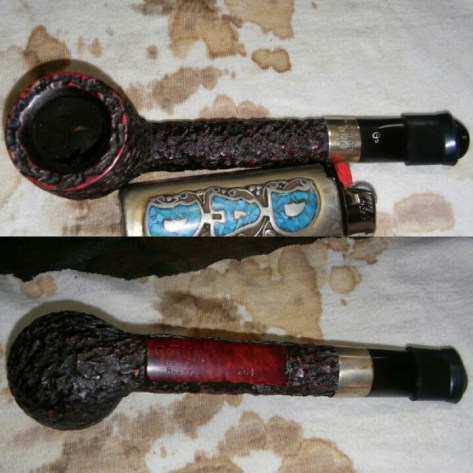

Lightly smoked like many of the pipes in this lot, the chamber was free of any real build up and its silver band was tarnished. A little oxidation was present, as well as some light chatter, the Peterson’s “P” logo was present and accounted for, it seems it did not meet its demise as its counterparts did in this lot.

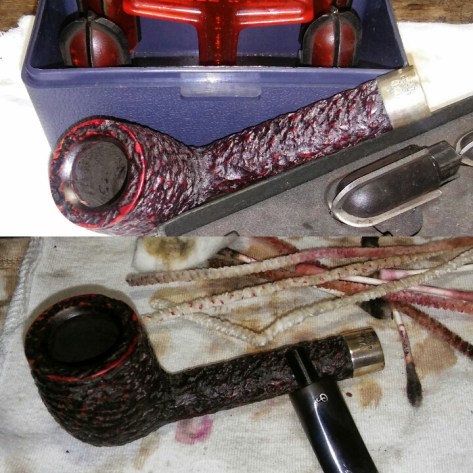

PhotoGrid_1468504128520

I tag-teamed the chamber with my PipNet and Castle Ford reamer, taking what little cake there was back to a suitable level. I then cleaned the internals with EverClear, stiff/soft pipe cleaners, makeup pads and Q-Tips, cleaning until my final pipe cleaner came out as it went in.

20160713_110554~2

I gave the stummel and silver band a wipe down with Method Wood For Good Polish with a rag to remove the oils, dirt and debris. I left it aside to dry.

20160713_143719~2

While the stummel dried I mixed Fiebing’s red and dark brown leather dye together, more red then brown and added a little EverClear to lighten the stain.

PhotoGrid_1468503210926

I applied a few coats of the stain with a brush and hit it with a Bic lighter to set the stain, removing the excess stain with an alcohol dampened rag.

20160713_145240~2

After cleaning the silver band it was dull and had a few faint surface scratches. I taped off the shank with blue painters tape and buffed the band with tripoli, bringing back its shine.

PhotoGrid_1468458885077

I used caution when removing the oxidation from the stem, the “P” logo was in fine shape. Many of the pipe stem logos in this lot were buffed clean off or at least partially missing. I applied non-bleach Soft Scrub to the oxidized areas of the stem and let the Soft Scrub penetrate the oxidation. Once the Soft Scrub turned from white to a brownish color I scrubbed the area with a Q-Tip so not to disturb the logo. I usually use a rag to remove the oxidation but in fear of loosing the logo I went slow with a Q-Tip, I would have to repeat this a few times until all oxidation was removed.

20160713_210657~2

There was some light chatter at the bit/lip area of the stem I used 400, 800 and 1000 grit sandpaper to remove the chatter. I then ran the stem though the various grits of micro-mesh.

Complete

20160725152830~220160725152852~220160725152926~2PhotoGrid_1469471850921PhotoGrid_1469471800219

 Finished up on the wheel with white diamond, a few coats carnauba and a micro-fiber hand buff. Buffing the stem with blue compound and carnauba.

Thanks For Stopping In

Tim.



Tobacco Pipe Refurbishing

Quick Clean Up- Stanwell Night & Day 232

2 Comments

20160705_174524

My most recent purchase. A few caught my eye right off the bat, Peterson Donegal Rocky 999 and 264, Savinelli Alligator, Roma and Sherwood Rock Briar, Jobey Asti and a Stanwell Night & Day. All in very nice lightly smoked condition, rubber bits protecting most of the stems. I was happy with the lot from the start but the seller sweetened the deal even more by throwing in a few surprise extras, two pipe cases, pipe cleaners, a chrome stand and tobacco. I started with the Stanwell I liked the shape and it was hardly touched, I knew I’d have time to clean her up quick in between the few things I had going on today.

The Refresh.

PhotoGrid_1468004985198PhotoGrid_1468005012333PhotoGrid_1468004952605

Smoked once, maybe twice.She was in like new condition, the carbon bowl coating was still in place, not a single tooth mark on the stem and the internals were spotless. There was a weird oil or grease on the stummel that left my fingers slippery .

20160708_140358~2

I cleaned the internals of the stummel and stem with EverClear Q-Tips, soft/stiff pipe cleaners and a makeup pad to wipe down the stems exterior.I gave the stummel a good wipe down with Method Wood For Good Polish to remove the oily residue. This was by far the quickest clear up I’ve done aside from maintaining my own rotation.

Spic & Span

20160708155806~2PhotoGrid_1468005084805PhotoGrid_146800504748420160708160100~220160708160114~220160708155956~2

Finished up on the wheel with white diamond, a few coats carnauba and micro-fiber hand buff. Buffing the stem with blue compound and carnauba

Thanks For Dropping By.

Tim.

Tobacco Pipe Refurbishing

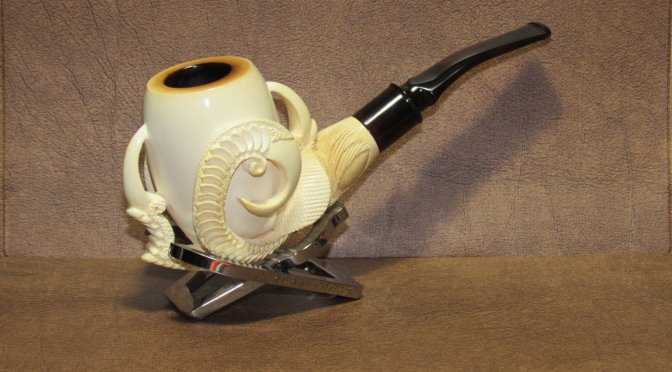

Forgotten Meer

1 Comment

Meerschaum.

A soft white clay like material consisting of hydrated magnesium silicate, found chiefly in Turkey.



To be honest Meerschaum freaks me out,  far too many do’s and don’ts and fragile, I guess I’m a little clumsy and briar is far more resilient. I’ve redone a couple in the past but always let them go, this unmarked Meer I received a year ago in a lot and forgot all about it until I was digging in my tobacco drawer for a new tin and stumbled across its case. I’m amazed by the skill used to carve these intricate pieces and many are unsigned, the carver never gets credit for there time and effort. I’ve always enjoyed seeing a well colored Meer, I’ll hang on to this one and see how she turns out.

The Restoration.

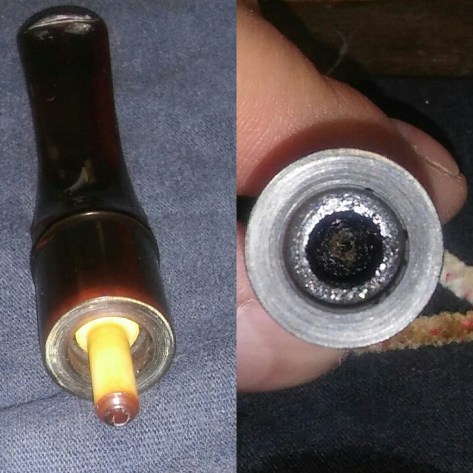

PhotoGrid_1467418064114PhotoGrid_1467418239993PhotoGrid_1467418201360

The pipe was in decent shape, a few shallow scratches and light rim build up. The stummel was in sold condition free of cracks and the chamber was free of cake. The stem was the biggest issue, plugged shut with tars and oils, the threaded tenon was seized in place and the bit was chewed and chipped.

PhotoGrid_1467418110463

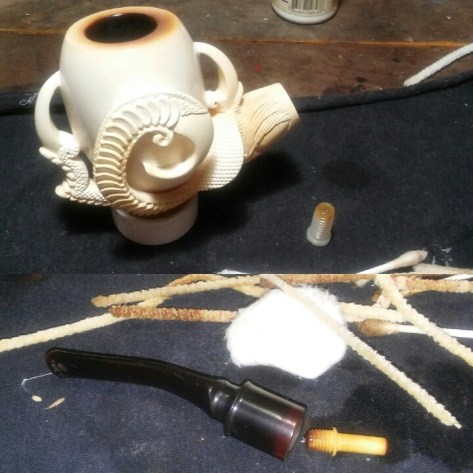

To fee the threaded tenon I dripped a little EverClear around the tenon and left it to sit, after twenty minutes I was able to free it from the stem. I cleaned the internals of the stem and stummel with EverClear, Q-Tips and soft pipe cleaners, cleaning until the pipe clears came out clean. I cleaned the rim with Method Good For Wood Polish removing the build up of tars and oils.

PhotoGrid_1467418150741

The lip/bit was chewed, cracked and chipped. The stem being lucite made things a bit more difficult to repair the missing piece of the button. I mixed thick black CA glue and a little charcoal powder and applied it to the lip/bit area with a toothpick hitting with accelerator to set the patch. The patch wouldn’t be transparent but the repair would be stronger then using Gorilla glue.

PhotoGrid_1467837460068

I left the stem to sit overnight to allow the patch to cure, the next morning I reshaped the button with needle files and 400, 800 and 1000 grit sandpaper.

20160706_142046~2

With the new button formed I ran the stem though the various grits of micro-mesh.

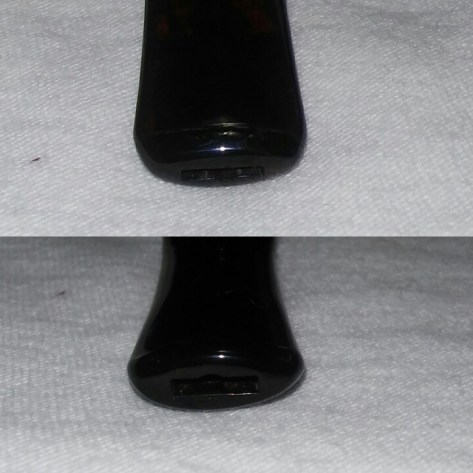

PhotoGrid_1467837417636

In the end the patch blended pretty well.

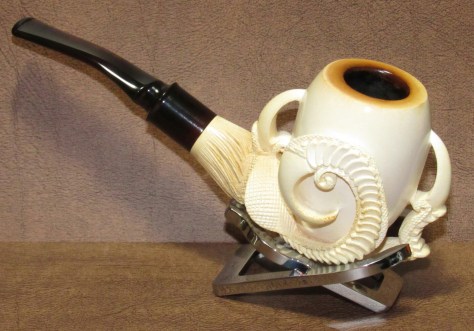

Complete.



20160706161737~220160706161801~220160706162205~220160706161821~220160706162443~2

I gave the stummel a wipe down with Howard’s Butcher Block Conditioner and hand buffed off the excess. I lightly buffed the stem at a low rpm with blue compound, a few coats of carnauba and a micro-fiber hand buffing.

Thanks For Taking A Look

Tim.

Tobacco Pipe Refurbishing

Quick Clean Up of 2 Petersons

2 Comments

Peterson.

Donegal Rocky XL90 & Standard XL305



Its always nice to add a couple more Petes to the collection and in decent condition to boot. I enjoy a challenge as much as the next guy but its also nice to do a leisurely standard cleaning.

The Clean Up.



20160629_053013~2PhotoGrid_1467193304402PhotoGrid_1467193244125PhotoGrid_1467193280416PhotoGrid_1467193185706PhotoGrid_1467193209469

 For the price they were both in great lightly smoked condition. A little oxidation , chatter and the silver band on the Donegal was tarnished.

20160630_113726~2

I started with my PipNet reamer and reamed back the cake to a suitable thickness. The Donegal chamber was perfect, still had the bowl coating. The 315 was a little different the bowl coating was still there but there was an indentation on the side of the chamber that was caused by careless reaming in the past. I sanded the area to smooth out the damage as much as possible, in the long run it will not affect the smoke .

20160630_122943~2

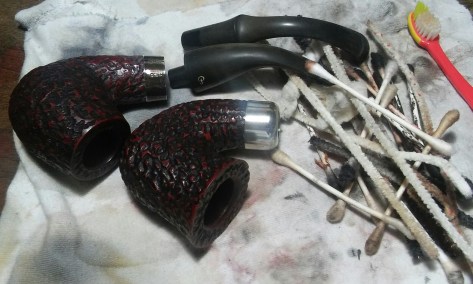

Next I cleaned the internals with EverClear stiff/soft pipe cleaners and Q-Tips. Very clean internals on both pipes, if you were to judge the pipes by there mortise alone you’d think they were un-smoked.

20160630_123728~2

With the internals clean I now gave the stummals a wipe down with Method Wood For Good Polish and found a new use for the polish in the process it also cleans the tarnish from  silver bands. I’m amazed by this stuff more and more each time I use it.

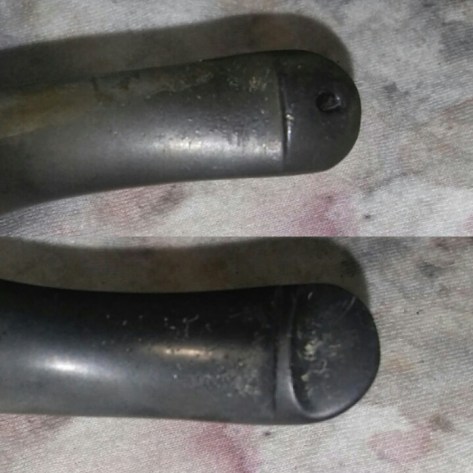

PhotoGrid_1467307914974PhotoGrid_1467307954142PhotoGrid_1467193209469PhotoGrid_1467307987435

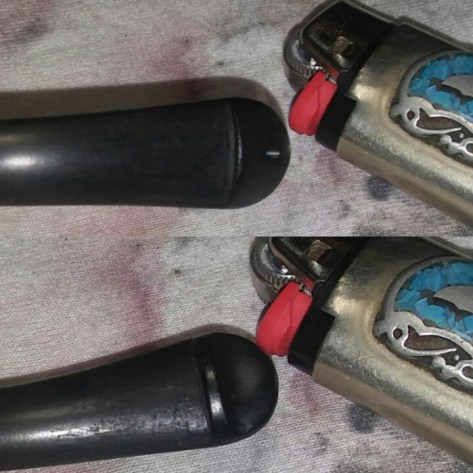

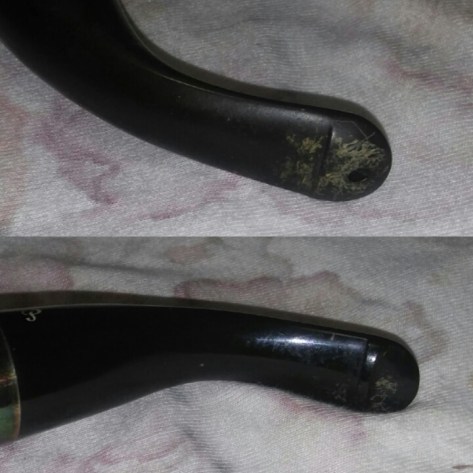

Before removing the oxidation I tried a little heat to remove some of the chatter. ( holding the stem above the flame of a Bic Lighter moving the flame at all times so not to burn the stem)  Both stems responded pretty well, the XL90 responded the best leaving only minimal marks, the 305’s upper side was left with very little chatter after the heat , the under side  didn’t respond as well and would still need sanding,

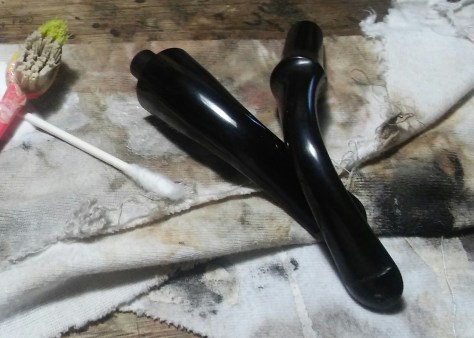

20160630_130359~220160630_160529~2

With the bulk of the chatter removed I moved onto the oxidation, I applied a generous amount  of non-bleach Soft Scrub and left it aside to allow the Soft Scrub to brake up the oxidation, once the Soft Scrub turns from white to a brownish color its time to scrub vigorously with a rag adding more Soft Scrub as needed. ( Holding the stem under natural light will help to see if all oxidation has been removed)

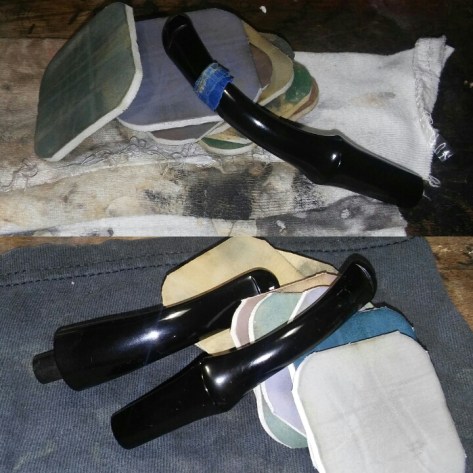

PhotoGrid_1467377717656

I now ran the stems thought the various grits of micro-mesh. The XL90 didn’t need much attention but the 305 needed a bit more work, I taped off the bit end with blue painters tape so my more abrasive sanding would remain in one area. I sanded with 400,800 and 1000 grit sandpaper wet to remove the rest of the chatter I then ran it though the micro-mesh pads.

20160701_121917~2

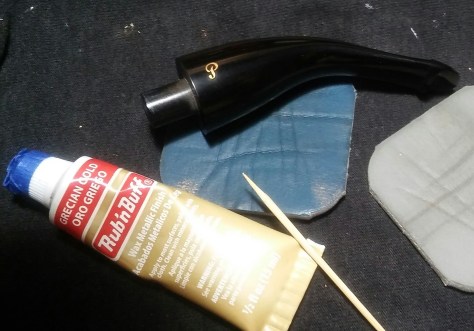

During my process of removing the oxidation I also inadvertently removed the P from the XL90 stem , I taped off the P originally but the tape was no match for the Soft Scrub. My white Rub’n Buff dried up so gold would have to do, using a toothpick I applied the Rub’n Buff and allowed it to dry, I then lightly polished with 8000 and 12000 micro-mesh pads.

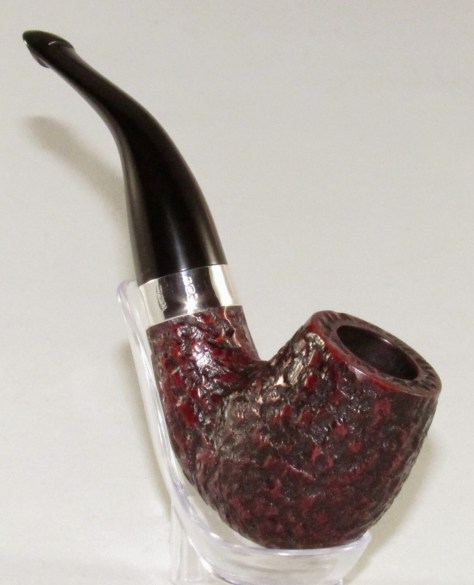

Complete.

20160701234016~220160701234110~220160701234127~220160701234200~220160701234233~220160701234256~220160701234326~2

I finished up on the wheel with a few coats of carnauba and micro-fiber hand buffing. Buffing the stem with blue compound and carnauba.

Thanks For Taking A look.

Tim.
